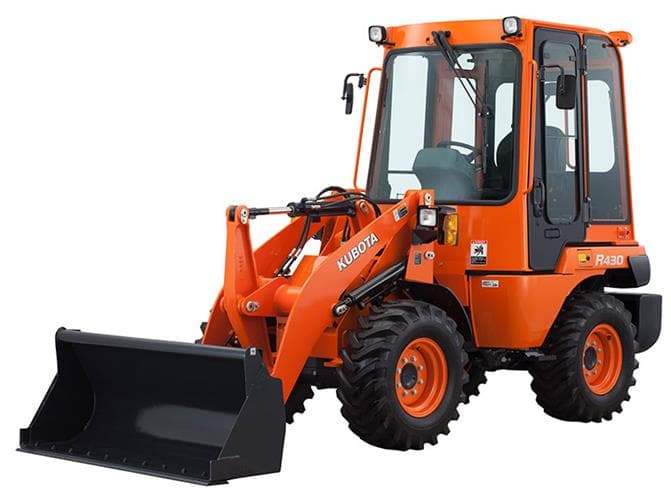

R430
WHEEL LOADERS
Call for Pricing
Compact design with impressive power allows the R430 to get the work done where larger loaders can't fit. The R430 also delivers big on comfort in every season with an available enclosed cab featuring heat and A/C.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $6,000 on Construction Equipment!
Construction
Save up to $3000 or 0% A.P.R. for up to 36 Months ON R SERIES!
WHEEL LOADERS
Powerful Kubota Engine
The R430 boasts a gross rating of 47.6 HP (SAE J 1995) that provides the extra muscle needed for all of the chores that the loader is capable of performing.
Comfortable Work Station
Comfort and convenience are the keys to operator efficiency. The working station is mounted on rubber ISO mounts to minimize sounds and vibrations. Increase your comfort level in all seasons with an enclosed heated and A/C cooled cab.
Load Sensing Transmission
As the travel and loading conditions change, the R430's transmission automatically shifts to compensate to provide maximum torque and speed for efficient ground speed operation. The manual switch can be operated with a convenient button located on the loader control level.
Limited Slip Differential
Mud, sand, snow are no problem for the R430's front limited slip axle. If a front wheel slips, the power is transferred to the opposite wheel to restore traction.
Hybrid Link Design
The well-balanced cylinder position of the Z link provides strong bucket break out forces and a lift path almost parallel to the ground for superior reach and lift.
Rear Backhoe
The R430 takes versatility to a new level in compact wheel loaders with an optional backhoe attachment. The RBK4009SA backhoe allows the operator to dig a trench up to seven feet deep and 24 inches wide.
Specifications
Angle Of Rear Frame Oscillation (deg.)
Articulation Angle (deg.)
Auxiliary Hydraulic Pressure Psi, Kgf (cm2)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Brakes ( Service)
Bucket Breakout Force, Lbs (k N)
Displacement (cu. In.)
Dump Height At Fully Raised Position, Ft
Emission Certification
Engine
Frame Oscillation Angle
Front/ Rear Axle Traction Lock
Fuel Tank, Gal (l)
Ground Clearance, In (mm)
Hinge Pin Height, Ft
Hydraulic Reservoir, Gal (l)
Hydraulic System, Gal (l)
Lifting Capacity At Ground Level, Lbs (k N)
Loader Clearance Circle, Ft (mm)
Loader Raise / Lower Time, Sec
Maximum Dump Angle
Operating Weight, Lbs (kg)
Output ( S A E J1349 Net) H P/(k W)/rpm
Output ( S A E J1995 Gross) H P/(k W)/rpm
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Rated Operating Capacity, ( R O C)
Reach Fully Raised At Maximum Dump Angle, Ft
Standard Bucket Capacity, Yd3
Standard Tire Size, In
Steering Angle
Tipping Load - Straight, Lbs (kg)
Tipping Load- Full Turn, Lbs (kg)
Traction Force, Lbs (kgf)
Transmission Type
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Turning Radius Track Circle, Ft (mm)
Angle Of Rear Frame Oscillation (deg.)
±8
Articulation Angle (deg.)
40 (each direction)
Auxiliary Hydraulic Pressure Psi, Kgf (cm2)
2697 (18.6)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
11.1 (42.1)
Brakes ( Service)
Enclosed wet disc
Bucket Breakout Force, Lbs (k N)
5215 (23.2)
Displacement (cu. In.)
11
Dump Height At Fully Raised Position, Ft
7ft2in
Emission Certification
Tier 4
Engine
D1830-CR-TIE4-WL5
Frame Oscillation Angle
8 degree
Front/ Rear Axle Traction Lock
Limited slip differential
Fuel Tank, Gal (l)
14.3 (54)
Ground Clearance, In (mm)
11" (280)
Hinge Pin Height, Ft
9ft2in
Hydraulic Reservoir, Gal (l)
11.1 (42)
Hydraulic System, Gal (l)
15.3 (58)
Lifting Capacity At Ground Level, Lbs (k N)
3687 (16.4)
Loader Clearance Circle, Ft (mm)
Loader Clearance Circle, ft (mm) 12' 1" (3695)
Loader Raise / Lower Time, Sec
4.4 / 3.3
Maximum Dump Angle
44 degrees
Operating Weight, Lbs (kg)
7758 (3519) / 8232 (3734)
Output ( S A E J1349 Net) H P/(k W)/rpm
44.5 (33.2) / 2600
Output ( S A E J1995 Gross) H P/(k W)/rpm
47.6 (35.5) / 2600
Overall Height, Ft (mm)
8' 3" (2515)
Overall Length, Ft (mm)
14' 4" (4355)
Overall Width, Ft (mm)
4' 12" (1520)
Rated Operating Capacity, ( R O C)
2298/2474/504/1625
Reach Fully Raised At Maximum Dump Angle, Ft
2ft9in
Standard Bucket Capacity, Yd3
0.5
Standard Tire Size, In
12.5/70-16-8PR
Steering Angle
40 degrees
Tipping Load - Straight, Lbs (kg)
5335 (2420)/5743 (2605) / 3494 (1585)/3770 (1710)
Tipping Load- Full Turn, Lbs (kg)
4596 (2085)/4949 (2245) / 3009 (1365)/3251 (1475)
Traction Force, Lbs (kgf)
5485 (24.4)
Transmission Type
Hydrostatic transmission
Traveling Speed: High, Mph (kph)
12.4 (20.0)
Traveling Speed: Low, Mph (kph)
3.0 (4.8)
Turning Radius Track Circle, Ft (mm)
10' 1" (3085)
