KX057-5

COMPACT EXCAVATORS

Call for Pricing

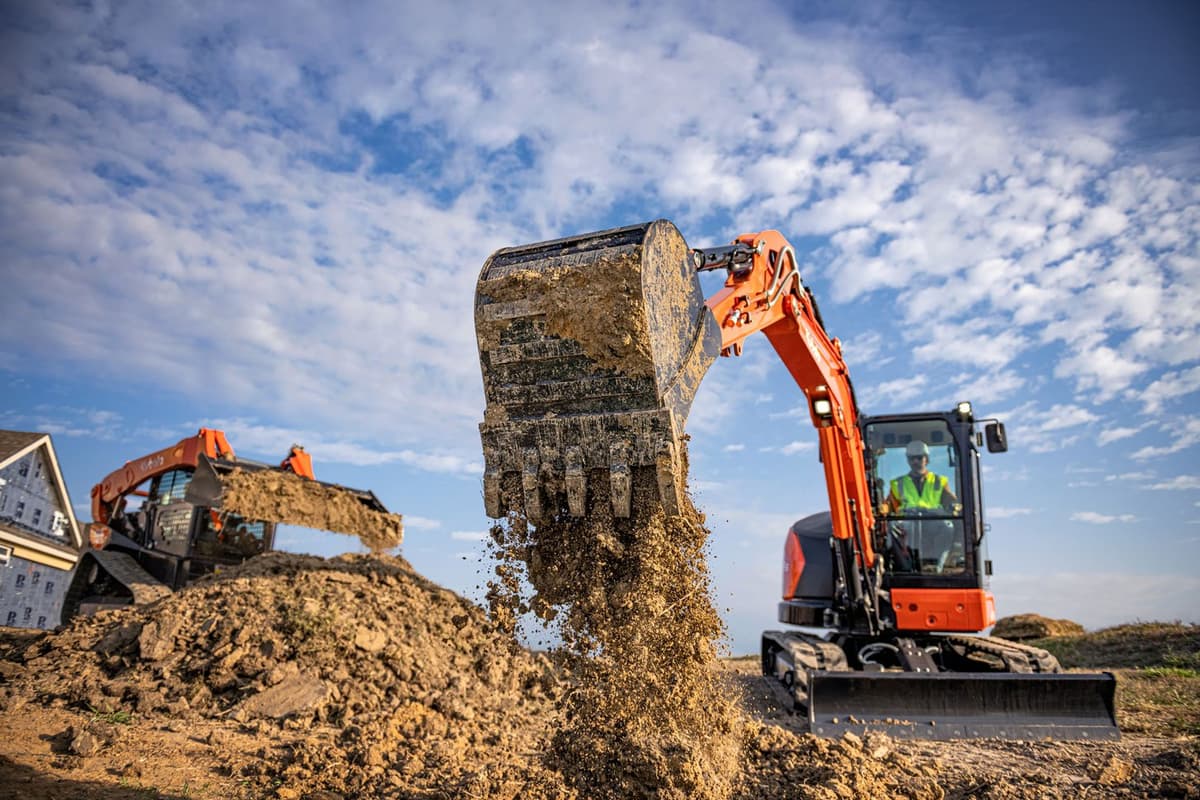

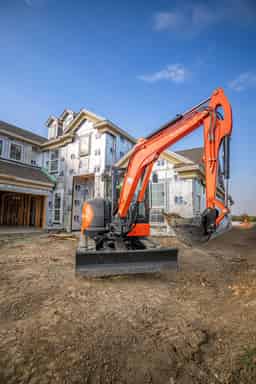

The Kubota KX057-5 doesn’t just give you the best in durability, comfort and performance-- it embodies Kubota’s ever-growing pursuit of innovation. Rated at 47.6 horsepower, the compact excavator is built to help you dig deeper, lift higher and dominate whatever task you throw its way. Let’s get to work. Kubota is the world’s #1 selling compact excavator for 20 years.*

*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.



Shop

Find Parts

Build

My Equipment

Download

Specifications

Compare

Specifications

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • LOW-RATE RENTAL BUSINESSES*

    *Not Available for National Accounts or Government Customers

    LOW-RATE RENTAL BUSINESSES*
  • Construction

    $0 Down, 0% A.P.R. for up to 60 Months or Save up to $6,000 on Construction Equipment!

    Construction
  • EXCAVATORS

    Save up to $6,000 or pay 0% A.P.R. for up to 60 Months with 0% Down on KX AND U SERIES!

    EXCAVATORS
New Features

New Features

  • NEW - 7" LCD Color Display with jog dial (Standard)
  • NEW Keyless Start - start the excavator without the use of a manual key; no more losing or can't find your keys; excavator will store up to (10) user passcodes to start the machine; anti theft tool (Dealer - Option)
  • Rearview Camera - factory ready; dealer installed option; engage the rearview camera by pressing the 'camera' button on the right hand side key pad; screen will split with machine information on top and a clear view behind the excavator
  • Automatic One Way Flow Hydraulic Return Line (3rd Line) - on the (-4) excavators the 3rd return line is engaged manually on the right side valve bank; the new feature is electronic and engaged through the display
  • Dual Adjustable Seat & Console - allows the operator to find the perfect operating position in the cab
  • LED Working Lights - standard feature; changed from Halogen lights to LED
  • Improved AC System - improved from (5) air vents to, now, (7) air vents for quick cool down or heat defrost

KX057-5

KX057-5

HP

Call for Pricing

Specifications

Arm Breakout Force, Lbs (kgf)

5463 (2478)

Auxiliary Hydraulics Flow Rate, G P M ( L P M)

19.8 (75) / 9.8 (37)

Blade Height, In (mm)

16.1in (410), Angle Blade: 25/25

Blade Width, Ft (mm)

6ft 5.2in (1960)

Bucket Breakout Force, Lbs (kgf)

10172 (4614)

Crawler Length, Ft (mm)

8ft 2in (2500)

Displacement (cu. In.)

159.6

Engine Model

Kubota V2607-CR-E5

Fuel Reservoir, Gal (l)

19.3 (73)

Ground Contact Pressure Psi, Kgf (cm2)

Rubber canopy/cab: 4.6 (0.32) / 4.7 (0.33), Angle blade rubber canopy/cab: 4.8 (0.33) / 4.9 (0.34), Angle blade steel canopy/cab: 4.9 (0.34) / 4.9 (0.34)

Horsepower (gross)

47.6

Hydraulic Oil Reservoir / System, Gal (l)

11.1 (41.9) / 20.3 (77.0)

Min. Ground Clearance, In (mm)

12.2in (310)

Operating Weight, Lbs (kg)

Rubber: 12200 (5535) / 12400 (5625), Angle blade rubber: 12346 (5600) / 12577 (5705) Angle blade steel: 13106 (5945) / 13338 (6050)

Overall Height, Ft (mm)

8ft 4in (2550)

Overall Length, Ft (mm)

18ft 1in (5520)

Overall Width, Ft (mm)

6ft 5in (1960)

Pump Capacity, G P M ( L P M)

14.8 (56.1) Variable x 2 / 9.8 (37.0) Gear x 1

Traveling Speed: High, Mph (kph)

3.0 (4.8)

Traveling Speed: Low, Mph (kph)

1.7 (2.8)
