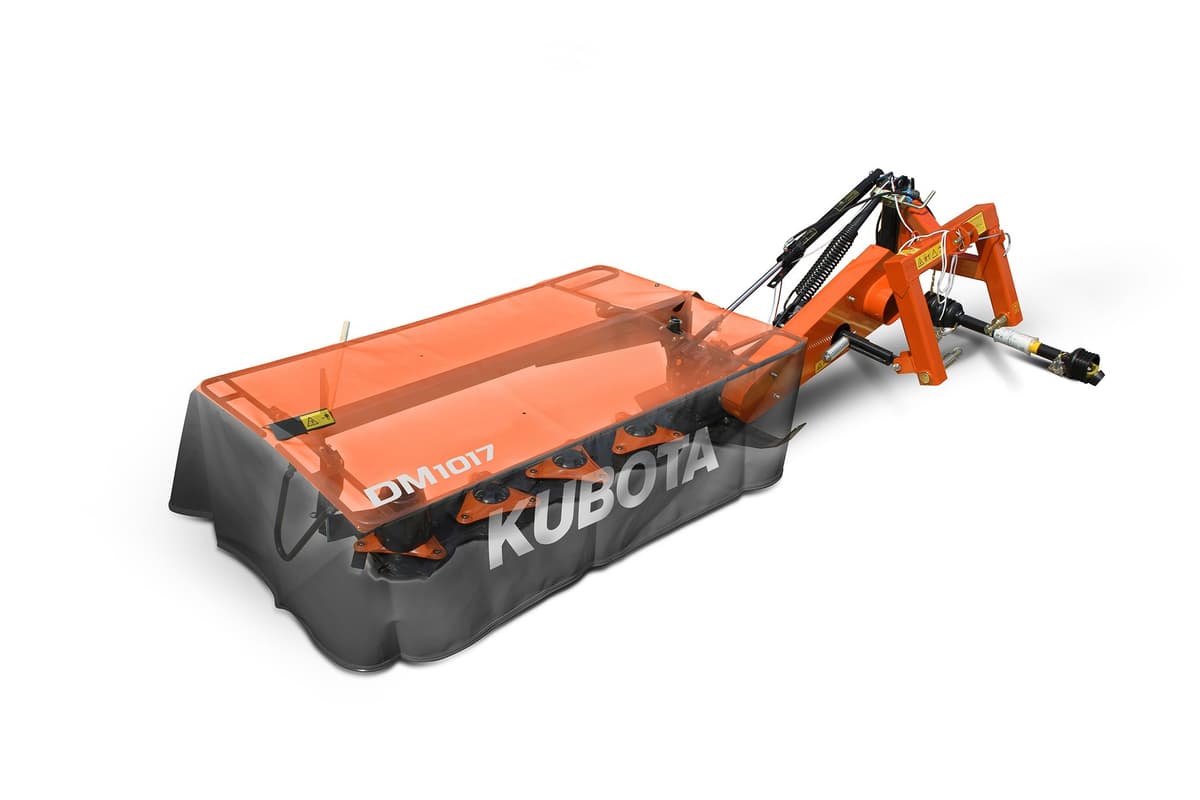

DM1017
DISC MOWERS
Call for Pricing
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Up to 0% A.P.R. for 48 Months on your new Kubota DM Series!
DISC MOWER SERIES
Fully Welded Cutterbar
Kubota’s DM1000 Series features a heavy-duty Kubota cutterbar, which is designed with easy maintenance and quiet operation in mind. The fully welded Kubota cutterbar with overlapping C-channels makes for a very stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.
Available Working Widths
- DM1017 – 5’6”
- DM1022 – 7’2”
- DM1024 – 7’9”
Spring Loaded Breakaway
When an obstacle is encountered, the DM1000 series swings backwards to protect the cutterbar; by reversing, the mower is reset into working position.
Fast Lift on Headlands
The mower is easily lifted via a hydraulic cylinder without activating the tractor’s 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.
Vertical Transport Position
When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.
Counter-Rotating Three-Bladed Discs
With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.
Specifications
Break Away
Cutterbar Operating Angle
Cutting Width Ft. (m)
High Skids +20/+40/+80 Mm
Hitch ( C A T)
Lighting Kit
Minimum P T O Horsepower Required H P/ K W
Non- Stop Break Away
Number Of Disc And Knives
Overrun Clutch
P T O R P M
Pin Hitch
Remotes
Stubble Height In. (mm)
Swath Board ( R H/ L H)
Swath Rollers ( R H/ L H)
Transport Width Ft. (m)
Weight Lbs. (kg)
Break Away
Standard
Cutterbar Operating Angle
-45/+15
Cutting Width Ft. (m)
5'6" (1.7)
High Skids +20/+40/+80 Mm
Optional
Hitch ( C A T)
2
Lighting Kit
Optional
Minimum P T O Horsepower Required H P/ K W
36/27
Non- Stop Break Away
N/A
Number Of Disc And Knives
4/12
Overrun Clutch
Standard
P T O R P M
540
Pin Hitch
Not Available
Remotes
1
Stubble Height In. (mm)
0.78"-1.97" (20-50)
Swath Board ( R H/ L H)
Standard/Optional
Swath Rollers ( R H/ L H)
Optional (RH)
Transport Width Ft. (m)
3' 9" (1.2)
Weight Lbs. (kg)
860 (390)
